HW1000 柴油双把数字静音发电焊机 | Diesel generator welder

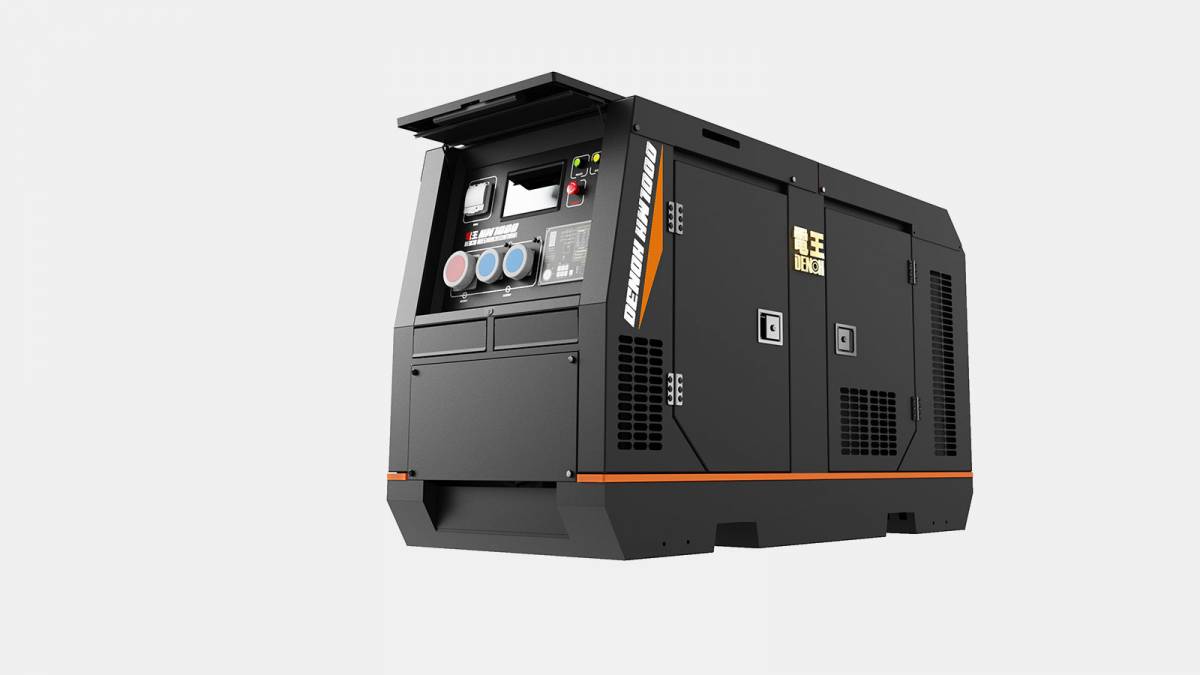

HW1000D 柴油双把数字静音发电电焊机 | Diesel generator welder
- 产品优势 | Product Advantage
- 具备优异的省油性能
- Has excellent performance of fuel saving
- 装备了独特的智能油门
- Equipped with a unique smart throttle
- 可根据负载实际变化状况来自动调节转速的高低
- The speed can be automatically adjusted according to the actual change of the load
- 燃油耗比普通机组低20%
- Fuel consumption is 20% lower than that of ordinary units
- 节能主要体现在变速恒压发动机焊机上
- Energy saving is mainly reflected in the welding machine of variable speed and constant voltage engines
HW1000-EW性能参数配置/Specification of HW1000-EW
|
|
碳刷/Excitation |
数字无刷变速/No |
驱动方式/Driven |
直接耦合/Direct coupling |
防护等级/Protection
class |
IP23S |
绝缘等级/Insulation class |
H |
焊接输出/Descending Output
|
|
额定功率/Rated power |
20C×2 KW |
额定电流/Rated current
|
500×2 DCA |
额定电压/Rated voltage |
40 DCV |
空载电压/Idle voltage
|
85 DCV |
额定使用率/Rated duty cycle |
60% |
电流调节范围/Current
range control |
（45-500)×2 A |
平特性/(CV) Output
|
|
空载电压/Idle voltage |
85 V |
额定功率/Rated duty cycle |
16.4×2 KW |
额定电流 /Rated current |
450×2 A |
额定功率/Rated duty cycle |
16.4×2 KW |
电压调节范围/Current range control |
15~36.5 V |
额定使用率/Rated duty cycle |
80% |
辅助电输出/Accessorial Receptacle |
|
额定功率/Rated power |
20 KVA |
额定电压 /Rated duty cycle |
380V(AC) |
辅助电额定电流/Rated current
|
30 A |
频率/Rated duty cycle Hz |
50 |
发动机/Engine |
|
品牌型号/Model |
潍柴/WEICHAI |
类型/Type |
四冲程四缸/4-stroke, 4-cylinder |
排气量/Displacement |
3.0-4.1L |
额定输出功率/Rated output
power |
35-103 KW |
额定转速/Rated speed |
900-1800 rpm |
启动方式/Starting
system |
电启动/Electric |
燃料/Fuel |
柴油/Diesel |
冷却方式/Cooling
system |
水冷/Water-cooled |
其它/Others |
|
油箱容量/Fuel tank capacity |
90 L |
外形尺寸/Dimension
(L×W×H) |
2070×900×1234 mm |
重量/Net weight |
1500 Kg |
噪音/Noise |
71db(7m) |
