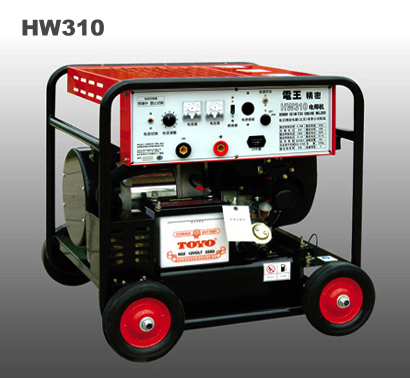

HW310EW 汽油300A发电电焊一体机 | 300A Gasoline generator welder
HW310EW 300A汽油发电电焊机 | 300A Gasoline generator welder
- 产品优势 | Product Advantage
- * 采用高低档电流选择开关，无需停机插拔快速插头的繁琐过程。
- * 无刷、诱导子发电技术。
- * 具有电弧吹力调节功能，电弧稳定、飞溅小。
- * 可连续长时间使用纤维素下向焊、氩弧焊等多种焊接方式。
- * Brushless, elicitor power generation technology,high power generation efficiency.
- * with arc blow force regulating function, arc stability, little splash.
- * Automatically according to the electricity situation acceleration and deceleration, fuel-efficient more.
HW310EW性能参数配置/Specification
of HW310EW
|
|
碳刷/Brush |
无/No |
驱动方式/Driven |
直接耦合/Direct coupling |
防护等级/Protection
class |
IP21 |
绝缘等级/Insulation class |
F |
焊接输出/Descending Output
|
|
额定功率/Rated power |
8.7 KW |
额定电流/Rated current
|
280 DCA |
额定电压/Rated voltage |
31.2 DCV |
空载电压/Idle voltage
|
85 DCV |
暂载率/Rated duty cycle |
50% |
焊接电流调节范围/Current
range control |
（60-310）DCA |
辅助电输出/Accessorial Receptacle |
|
额定功率/Rated power
|
3.0 KW |
额定电压/Rated voltage |
220 DCV |
辅助电额定电流/Rated current
|
13.7 A |
暂载率/Rated duty cycle |
100% |
发动机/Engine |
|
型号/Model |
科勒/KOHLER CH20S |
类型/Type |
四冲程双缸/4-stroke, 2-cylinder |
排气量/Displacement |
624 CC |
额定功率/Rated output
power |
20 HP |
额定转速/Rated speed |
3580 rpm |
启动方式/Starting
system |
电启动/Electric |
燃料/Fuel |
无铅汽油/Unleaded gasoline |
冷却方式/Cooling
system |
风冷/Air cooling |
润滑油容量/Lucrative capacity |
1.55 L |
其它/Others |
|
油箱容量/Fuel tank capacity |
20 L |
外形尺寸/Dimension
(L×W×H) |
730×620×718 mm |
重量/Net weight |
165 Kg |
电池/Battery |
12V-32AH |
车轮/Wheel kit |
标配/standard |
