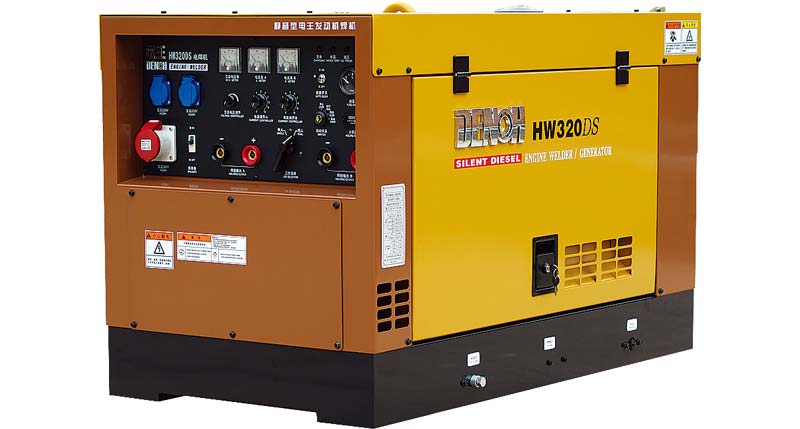

300A柴油静音发电电焊机 | 300A Diesel silence generator welder

产品优势 | Product Advantage

* HW320DS发电电焊机由日本工程师参与设计。
* 质量管理严谨，符合强制性产品认证(CCC)标准。
* 可提供50Hz 10KVA三相与3.3KW×2单相辅助电源。
* HW320DS-EW engine welding machine by Japanese engineers to participate in the design.
* China compulsory certification (CCC) standards;
* Provide 50 hz 10 kva three-phase and single-phase auxiliary power 3.3 KW x 2.

HW320DS-EW性能参数配置/Specification of HW320DS-EW
类型/Type	无刷/Brushless
驱动方式/Driven	直接耦合/Direct coupling
防护等级/Protection class	IP23
绝缘等级/Insulation class	F
焊接输出/Descending Output
额定功率/Rated power	8.7 KW
额定电流/Rated current	280 DCA
额定电压/Rated voltage	31.2 DCV
空载电压/Idle voltage	75 DCV
暂载率/Rated duty cycle	50%
焊接电流调节范围/Current range control	45-300 DCA
辅助电输出/Accessorial Receptacle
额定功率/Rated power	10.0 KW
额定电压/Rated voltage	380 DCV
辅助电额定电流/Rated current	15.2 A
暂载率/Rated duty cycle	80%
发动机/Engine
型号/Model	久保田/Kubota D905
类型/Type	四冲程三缸/4-stroke, 3-cylinder
排气量/Displacement	898 CC
额定功率/Rated output power	19 HP
额定转速/Rated speed	3000 rpm
启动方式/Starting system	电启动/Electric
燃料/Fuel	柴油/Diesel
冷却方式/Cooling system	水冷/Water-cooled
其它/Others
油箱容量/Fuel tank capacity	37 L
外形尺寸/Dimension (L×W×H)	1300×710×803 mm
重量/Net weight	410 Kg
电池/Battery	12V-36AH
